3GFM Gas Flowmeter – Complete Guide for Thermal Spray & Flame Spray Applications

What is a 3GFM Gas Flowmeter?

A 3GFM Gas Flowmeter is a precision gas measuring instrument used in:

• Flame spray coating systems

• Wire flame spray guns

• Metallizing equipment

• Thermal spray coating machines

• Combustion spray applications

The flowmeter regulates and measures:

• Oxygen flow

• Fuel gas flow

It helps maintain proper gas balance for achieving high-quality thermal spray coatings.

The flowmeter is connected between the gas supply and the flame spray gun to monitor gas flow and detect leakage or blockage in gas lines.

Importance of Gas Flowmeters in Thermal Spray Coating

In thermal spray operations, correct gas flow is critical for:

• Stable flame generation

• Uniform coating quality

• Better coating adhesion

• Reduced material wastage

• Improved spray efficiency

• Operator safety

Even small variations in oxygen and fuel gas balance can affect thermal efficiency and coating performance.

The 3GFM Flowmeter provides accurate gas monitoring for professional metallizing applications.

Key Features of 3GFM Gas Flowmeter

Precision Gas Measurement

The 3GFM accurately measures oxygen and fuel gas flow for thermal spray operations.

Dual Section Design

The unit includes separate sections for:

• Oxygen

• Fuel Gas

Reliable Flow Indication

The flowmeter instantly detects:

• Gas leakage

• Hose blockage

• Pressure fluctuation

• Gas flow imbalance

Industrial Safety Design

The system includes:

• Built-in check valves

• Protective plastic shield

• Separate gas passages

• Anti-backflow safety

Easy Flow Adjustment

Needle valves allow precise gas flow control for stable spraying conditions.

Applications of 3GFM Flowmeter

The 3GFM Flowmeter is widely used in:

• Thermal spray coating plants

• Metallizing workshops

• Zinc spraying operations

• Aluminum coating systems

• Arc spray systems

• Flame spray gun setups

• Corrosion protection industries

• Surface engineering applications

Industries Using 3GFM Gas Flowmeters

Steel Industry

• Roll coating

• Surface rebuilding

• Corrosion protection

Marine Industry

• Ship maintenance

• Offshore coating

• Anti-corrosion metallizing

Cement Plants

• Wear-resistant coating

• Equipment restoration

Power Plants

• Turbine coating

• Boiler component repair

Oil & Gas Industry

• Pipeline coating

• Corrosion-resistant applications

How 3GFM Gas Flowmeter Works

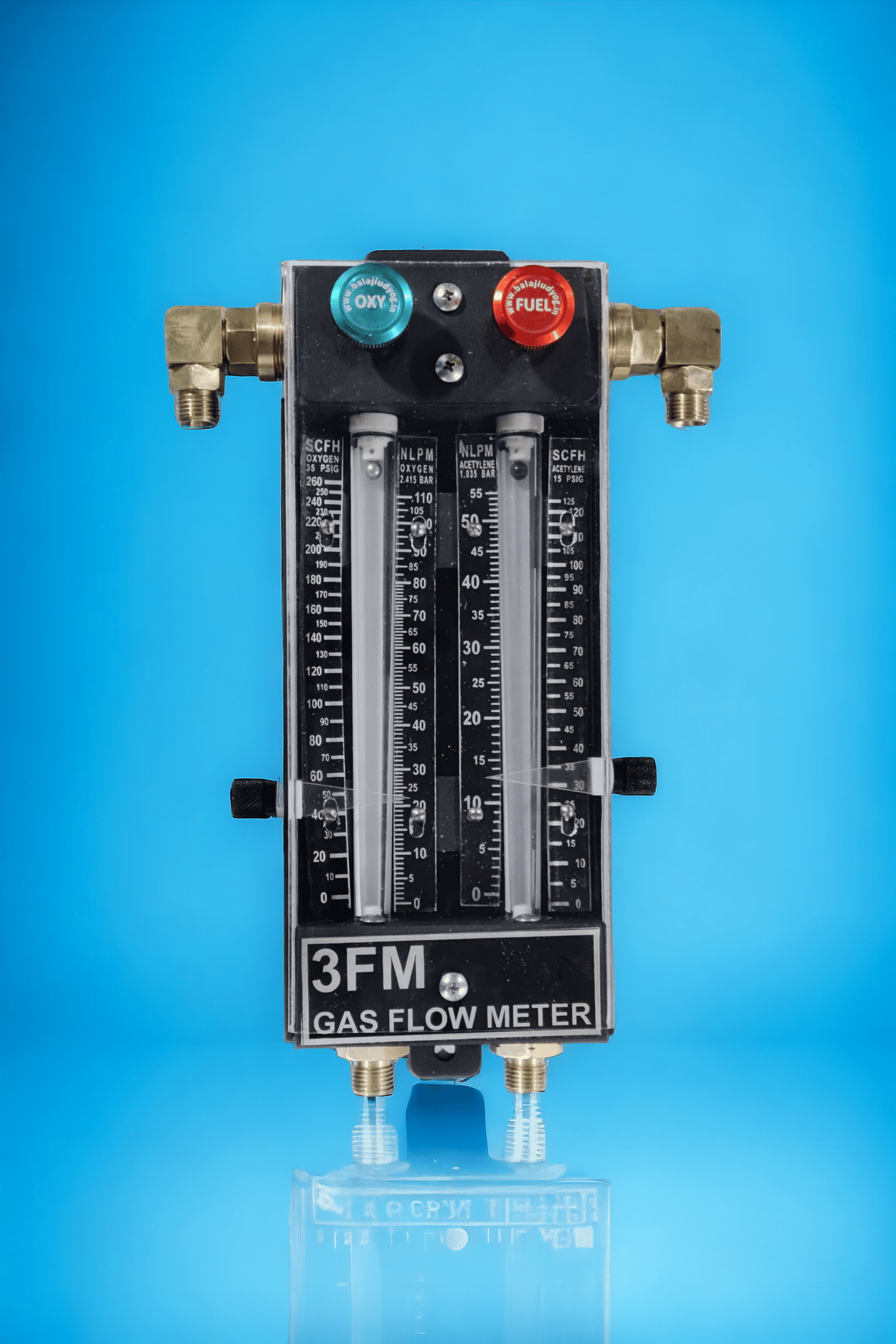

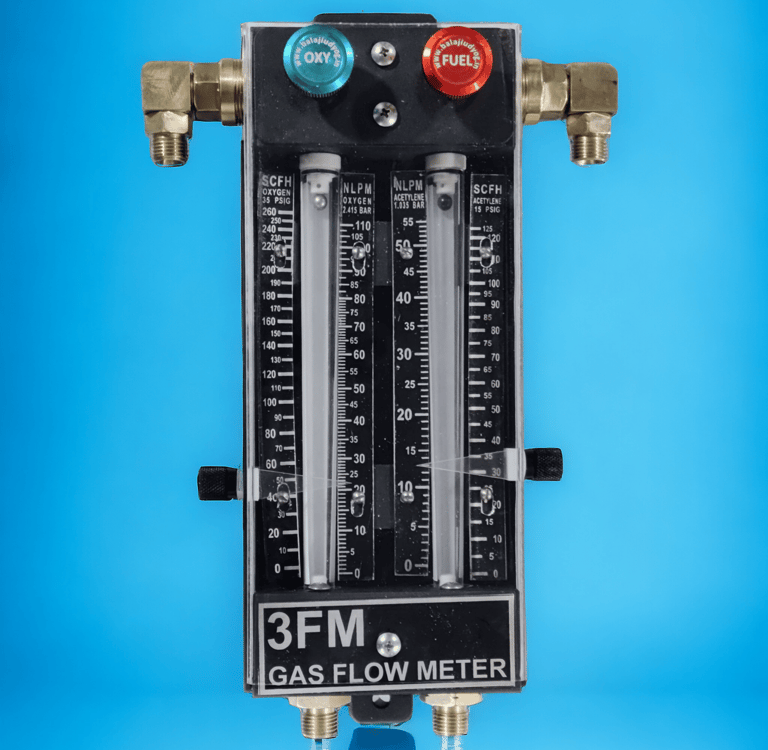

The 3GFM Gas Flowmeter operates by measuring gas flow through transparent calibrated tubes using floating ball indicators.

The system includes:

• Flowmeter tubes

• Ball floats

• Needle valves

• Check valves

• Pointer assemblies

• Mounting blocks

The floating ball rises and falls depending on gas flow rate. Operators can quickly monitor and adjust gas flow for proper flame spray operation.

Fuel Gases Supported

The 3GFM Flowmeter supports multiple industrial fuel gases including:

• Acetylene

• Propane

• LPG

• Hydrogen

• Natural Gas

Different fuel gases require specific gravity correction adjustments for accurate flow measurement.

Fuel Gas Correction Factors

Fuel GasMultiplierPropane1.233Acetylene1.000Hydrogen0.263Natural Gas0.806

Advantages of BU 3GFM Gas Flowmeter

Accurate Gas Control

Ensures stable oxygen and fuel gas balance.

Better Coating Quality

Improves thermal spray coating consistency and adhesion.

Leak Detection

Flow variations instantly indicate leakage or blockage.

Industrial Durability

Designed for continuous industrial thermal spray operations.

Easy Maintenance

Simple cleaning and replacement procedures reduce downtime.

Enhanced Operator Safety

Integrated safety features protect against gas backflow and pressure surges.

Safety Features of 3GFM Flowmeter

Safety is extremely important in thermal spray operations.

The BU 3GFM includes:

• Built-in check valves

• Backflow prevention system

• Protective transparent shield

• Pressure-safe design

• Separate oxygen and fuel gas passages

Operators should always:

• Maintain proper ventilation

• Use exhaust systems

• Check gas leakage regularly

• Avoid excessive gas pressure

• Follow thermal spray safety guidelines

Installation Guidelines

For best performance:

• Mount the flowmeter vertically

• Position at eye level

• Avoid hose strain

• Use proper gas regulators

• Maintain correct pressure settings

The system should always be connected carefully with:

• Oxygen hose

• Fuel gas hose

• Flame spray gun

• Gas regulators

Maintenance of 3GFM Gas Flowmeter

Routine maintenance improves flowmeter life and performance.

Recommended Maintenance

• Clean flowmeter tubes regularly

• Check O-rings

• Inspect needle valves

• Replace damaged floats

• Verify gas flow accuracy

• Inspect hose fittings

Proper cleaning helps maintain accurate gas flow readings and coating quality.

Replacement Parts Available

Balaji Udyog supplies complete spare parts for 3GFM Flowmeters including:

• Flowmeter tubes

• Needle valves

• O-rings

• Floats

• Pointer assemblies

• Check valves

• Mounting blocks

• Plastic shields

• Hose fittings

Why Choose Balaji Udyog?

Balaji Udyog Official Website is a trusted manufacturer and exporter of:

• Thermal spray coating equipment

• Flame spray guns

• Metallizing systems

• Arc spray systems

• Gas flowmeters

• Air control units

• Shot blasting machines

• Blast rooms

• Metallizing wires

• Industrial coating solutions

Global Supply Markets

We supply globally to:

• USA

• UAE

• Saudi Arabia

• South Africa

• Europe

• Southeast Asia

• Latin America

Contact Balaji Udyog

Looking for:

• 3GFM Gas Flowmeter

• Thermal spray equipment

• Flame spray guns

• Metallizing systems

• Arc spray systems

• Zinc spray coating equipment

• Industrial gas flowmeters

Contact us today.

Contact Information

• Website: www.balajiudyog.in

• Email: sales@balajiudyog.in

• Mobile: +91 9269288805

Balaji Udyog delivers high-performance thermal spray coating solutions and industrial metallizing equipment worldwide.

Address: Plot No. 75, Hastinapur Nagar, Sangria, Jodhpur, Rajasthan - 342013, India

Contact Us:- +91 9269288805, +91 9256488805
